A3V56S30GTP

256M Single Data Rate Synchronous DRAM

A3V56S30GTP Features

* - Single 3.3V ±0.3V power supply - Maximum clock frequency: -60:166MHz/-70:143MHz/-75:133MHz - Fully synchronous operation referenced to clock rising edge - 4-bank operation controlled by BA0, BA1 (Bank Address) - CAS latency- 2/3 (programmable) - Burst length- 1/2/4/8/FP (progr

A3V56S30GTP General Description

A3V56S30GTP is organized as 4-bank x 8,388,608-word x 8-bit Synchronous DRAM with LVTTL interface and A3V56S40GTP is organized as 4-bank x 4,194,304-word x 16-bit. All inputs and outputs are referenced to the rising edge of CLK. A3V56S30GTP and A3V56S40GTP achieve very high speed data rates up to 16.

A3V56S30GTP Datasheet (0.99 MB)

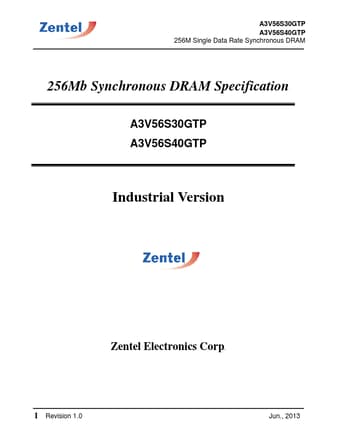

Preview of A3V56S30GTP PDF

Datasheet Details

Part number:

A3V56S30GTP

Manufacturer:

Zentel

File Size:

0.99 MB

Description:

256m single data rate synchronous dram.
A3V56S30GTP A3V56S40GTP 256M Single Data Rate Synchronous DRAM 256Mb Synchronous DRAM Specification A3V56S30GTP A3V56S40GTP Industrial Version Zentel.
