ZTX705, PNP SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS

PNP SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS ISSUE 3 – MAY 94 .

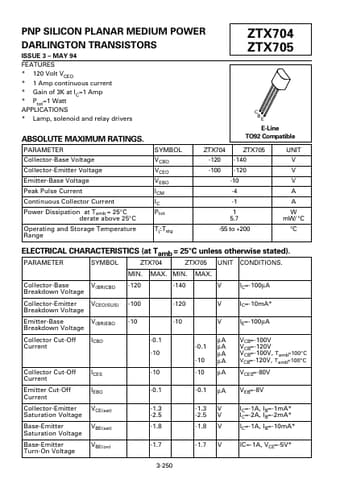

datasheet Preview Page 1 from Datasheet4u.com

ZTX705_ZetexSemiconductors.pdf

Preview of ZTX705 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

ZTX705

Manufacturer:

Zetex Semiconductors

File Size:

72.60 KB

Description:

PNP SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS

Features

* 120 Volt VCEO
* 1 Amp continuous current
* Gain of 3K at IC=1 Amp

Applications

* Lamp, solenoid and relay drivers ZTX704 ZTX705 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb = 25°C derate above 25°C Operating and Storage Temperatur
