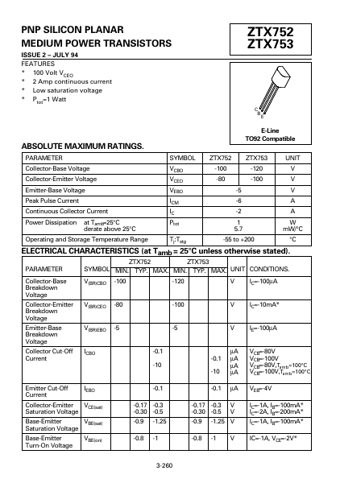

ZTX753 Datasheet, transistors equivalent, Zetex Semiconductors

ZTX753 Features

• Transistors
• 100 Volt VCEO
• 2 Amp continuous current
• Low saturation voltage
• Ptot=1 Watt ZTX752 ZTX753 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-B

PDF File Details

Part number:

ZTX753

Manufacturer:

Zetex Semiconductors

File Size:

62.06kb

Download:

📄 Datasheet

Description:

Pnp silicon planar medium power transistors.
