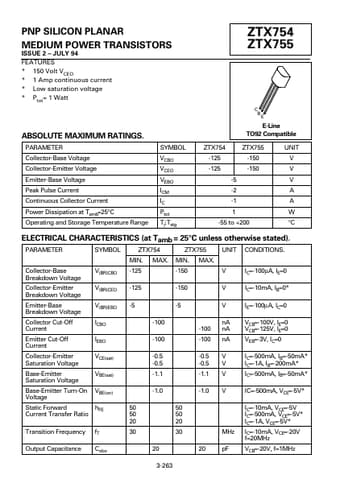

ZTX755 Datasheet, Transistors, Zetex Semiconductors

ZTX755 Features

• Transistors
• 150 Volt VCEO
• 1 Amp continuous current
• Low saturation voltage
• Ptot= 1 Watt ZTX754 ZTX755 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-

PDF File Details

Part number:

ZTX755

Manufacturer:

Zetex Semiconductors

File Size:

51.00kb

Download:

📄 Datasheet

Description:

Pnp silicon planar medium power transistors.
