ZTX718 Datasheet - Zetex Semiconductors

ZTX718, PNP SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR

PNP SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR ISSUE 4 * MAY 1998 .

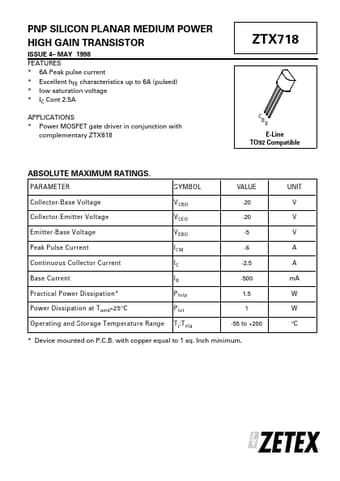

datasheet Preview Page 1 from Datasheet4u.com

ZTX718_ZetexSemiconductors.pdf

ZTX718 Datasheet Preview — Preview of ZTX718 PDF

Datasheet Details

Part number:

ZTX718

Manufacturer:

Zetex Semiconductors

File Size:

85.13 KB

Description:

PNP SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR

Features

* 6A Peak pulse current
* Excellent hFE characteristics up to 6A (pulsed)
* low saturation voltage

Applications

* Power MOSFET gate driver in conjunction with complementary ZTX618 ZTX718 C B E E-Line TO92 Compatible ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Base Current Practical Power Diss
