ZT3483E - Low Power 3V 250kbps/16Mbps RS485E Transceivers

Zywyn

📥 Download Datasheet

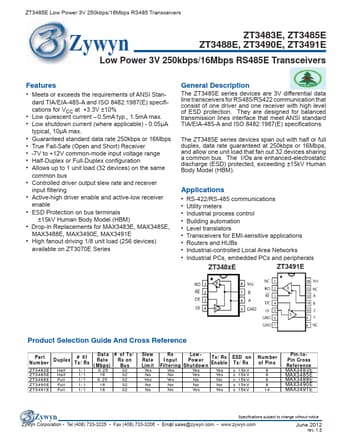

ZT3483E Datasheet Preview — Preview of ZT3483E PDF

Datasheet Details

Part number: ZT3483E
Manufacturer: Zywyn
File Size: 569.65 KB
Datasheet: ZT3483E-Zywyn.pdf
Description: Low Power 3V 250kbps/16Mbps RS485E Transceivers

ZT3483E Product details

Description

The ZT3485E series devices are 3V differential data line transceivers for RS485/RS422 communication that consist of one driver and one receiver with high level of ESD protection..

Features

Meets or exceeds the requirements of ANSI Standard TIA/EIA-485-A and ISO 8482:1987(E) speciﬁcations for VCC at +3.3V ±10%.
Low quiescent current.
0.5mA typ. , 1.5mA max.
Low shutdown current (where applicable) - 0.05μA typical, 10μA max.
Guaranteed standard data rate 250kbps or 16Mbps.
True Fail-Safe (Open and Short) Receiver.
-7V to +12V common-mode input voltage range.
Half-Duplex or Full-Duplex conﬁguration.
Al.
