ZT3485E Low Power 3V 250kbps/16Mbps RS485E Transceivers

The ZT3485E series devices are 3V differential data line transceivers for RS485/RS422 communication that consist of one driver and one receiver with high level of ESD protection. They are designed for balanced transmission lines interface that meet ANSI standard TIA/EIA-485-A and ISO 8482:1987(E) sp.

ZT3485E Features

* Meets or exceeds the requirements of ANSI Standard TIA/EIA-485-A and ISO 8482:1987(E) speciﬁcations for VCC at +3.3V ±10%

* Low quiescent current

* 0.5mA typ., 1.5mA max.

* Low shutdown current (where applicable) - 0.05μA typical, 10μA max.

* Guaranteed stan

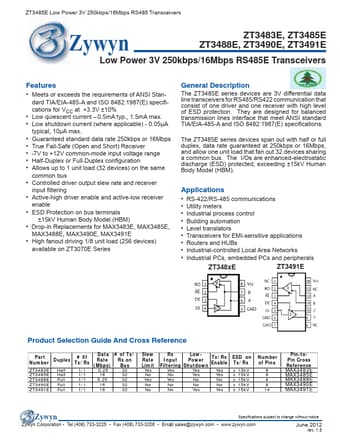

ZT3483E-Zywyn.pdf

ZT3485E Datasheet Preview — This datasheet PDF includes multiple part numbers: ZT3485E, ZT3483E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZT3485E, ZT3483E

Manufacturer:

Zywyn

File Size:

569.65 KB

Description:

Low power 3v 250kbps/16mbps rs485e transceivers.

Note:

This datasheet PDF includes multiple part numbers: ZT3485E, ZT3483E.
Please refer to the document for exact specifications by model.
