AS1520 - 8-Channel A/D Converters

Product Overview

austriamicrosystems AG

Datasheet Details

Part number	AS1520
Manufacturer	austriamicrosystems AG
File Size	113.73 KB
Description	8-Channel A/D Converters
Datasheet	AS1520 Datasheet

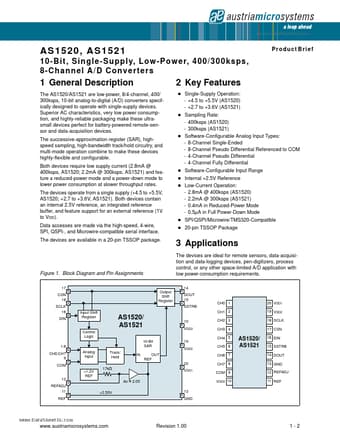

Additional preview pages of the AS1520 datasheet.

Product details

Description

The AS1520/AS1521 are low-power, 8/4-channel, 400/ 300ksps, 10-bit analog-to-digital (A/D) converters specifically designed to operate with single-supply devices.

Features

! Single-Supply Operation: - +4.5 to +5.5V (AS1520) - +2.7 to +3.6V (AS1521) Sampling Rate: - 400ksps (AS1520) - 300ksps (AS1521) Software-Configurable Analog Input Types: - 8-Channel Single-Ended - 8-Channel Pseudo Differential Referenced to COM - 4-Channel Pseudo Differential - 4-Channel Fully Differential Software-Configurable Input Range Internal +2.5V Reference Low-Current Operation: - 2.8mA @ 400ksps (AS1520) - 2.2mA @ 300ksps (AS1521) - 0.4mA in Reduced-Power Mode - 0.5µA in Full Power-D.
