AS1523, AS1522, 4-Channel A/D Converters

www.DataSheet4U.com AS1522, AS1523 1 0 - B i t , S i n g l e - S u p p l y, L o w - P o w e r, 4 0 0 / 3 0 0 k s ps , 4-Channel A/D Converters Produ.
The AS1522/AS1523 are low-power, 4/2-channel, 400/ 300ksps, 10-bit analog-to-digital (A/D) converters specifically designed to operate with single-sup.

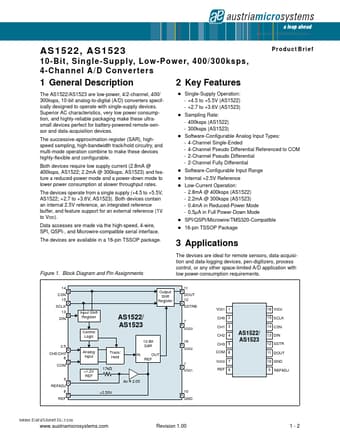

datasheet Preview Page 1 from Datasheet4u.com

AS1522_austriamicrosystemsAG.pdf

AS1523 Datasheet Preview — This datasheet PDF includes multiple part numbers: AS1523, AS1522. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AS1523, AS1522

Manufacturer:

austriamicrosystems AG

File Size:

112.90 KB

Description:

4-Channel A/D Converters

Note:

This datasheet PDF includes multiple part numbers: AS1523, AS1522.
Please refer to the document for exact specifications by model.

Features

* ! Single-Supply Operation: - +4.5 to +5.5V (AS1522) - +2.7 to +3.6V (AS1523) Sampling Rate: - 400ksps (AS1522) - 300ksps (AS1523) Software-Configurable Analog Input Types: - 4-Channel Single-Ended - 4-Channel Pseudo Differential Referenced to COM - 2-Channel Pseudo Differential - 2-Channel Fully Di

Applications

* The devices are ideal for remote sensors, data-acquisition and data-logging devices, pen-digitizers, process control, or any other space-limited A/D application with low power-consumption requirements. 11 Figure 1. Block Diagram and Pin Assignments 14 CSN 15 SCLK 13 DIN Input Shift Register Output
