AS1524 - 1-Channel Pseudo/True-Differential and 2-Channel Single-Ended ADCs

Product Overview

austriamicrosystems AG

Part number	AS1524
Manufacturer	austriamicrosystems AG
File Size	748.48 KB
Description	1-Channel Pseudo/True-Differential and 2-Channel Single-Ended ADCs
Datasheet	AS1524 Datasheet

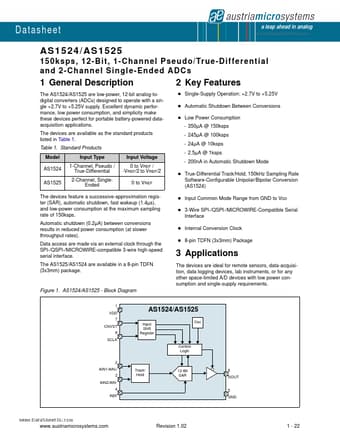

Additional preview pages of the AS1524 datasheet.

The AS1524/AS1525 are low-power, 12-bit analog-todigital converters (ADCs) designed to operate with a single +2.7V to +5.25V supply.

! ! ! Single-Supply Operation: +2.7V to +5.25V Automatic Shutdown Between Conversions Low Power Consumption - 350µA @ 150ksps - 245µA @ 100ksps - 24µA @ 10ksps - 2.5µA @ 1ksps - 200nA in Automatic Shutdown Mode ! True-Differential Track/Hold, 150kHz Sampling Rate Software-Configurable Unipolar/Bipolar Conversion (AS1524) Input Common Mode Range from GND to VDD 3-Wire SPI-/QSPI-/.
