AS1525 Datasheet, adcs equivalent, austriamicrosystems AG

AS1525 Features

  • Adcs ! ! ! Single-Supply Operation: +2.7V to +5.25V Automatic Shutdown Between Conversions Low Power Consumption - 350µA @ 150ksps - 245µA @ 100ksps - 24µA @ 10ksps - 2.5µA @ 1ksps - 200nA

PDF File Details

Part number:

AS1525

Manufacturer:

austriamicrosystems AG

File Size:

748.48kb

Download:

📄 Datasheet

Description:

1-channel pseudo/true-differential and 2-channel single-ended adcs. The AS1524/AS1525 are low-power, 12-bit analog-todigital converters (ADCs) designed to operate with a single +2.7V to +5.25V supply.

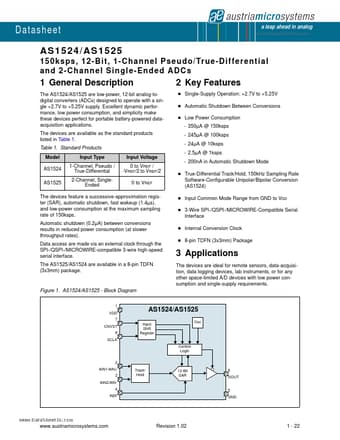

Datasheet Preview: AS1525 📥 Download PDF (748.48kb)
Page 2 of AS1525 Page 3 of AS1525

AS1525 Application

  • Applications The devices are available as the standard products listed in Table 1. Table 1. Standard Products Model AS1524 AS1525 Input Type 1-Chan
