AT84AD004B - Dual 8-bit 500 Msps ADC

Product Overview

📥 Download Datasheet

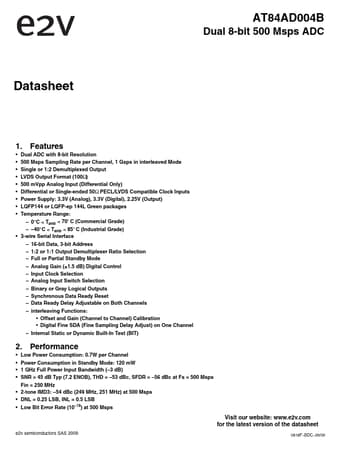

AT84AD004B Dual 8-bit 500 Msps ADC by e2v - Datasheet Preview — Datasheet preview – AT84AD004B

Datasheet Details

Part number	AT84AD004B
Manufacturer	e2v
File Size	611.39 KB
Description	Dual 8-bit 500 Msps ADC
Datasheet	AT84AD004B Datasheet
Additional preview pages of the AT84AD004B datasheet.

Product details

Features

Dual ADC with 8-bit Resolution.
500 Msps Sampling Rate per Channel, 1 Gsps in interleaved Mode.
Single or 1:2 Demultiplexed Output.
LVDS Output Format (100Ω).
500 mVpp Analog Input (Differential Only).
Differential or Single-ended 50Ω PECL/LVDS Compatible Clock Inputs.
Power Supply: 3.3V (Analog), 3.3V (Digital), 2.25V (Output).
LQFP144 or LQFP-ep 144L Green packages.
Temperature Range:.
0°C < Tamb < 70° C.
