AT84AS001 - 12-bit 500 Msps ADC

Product Overview

📥 Download Datasheet

AT84AS001 12-bit 500 Msps ADC by e2v - Datasheet Preview — Datasheet preview – AT84AS001

Datasheet Details

Part number	AT84AS001
Manufacturer	e2v
File Size	847.00 KB
Description	12-bit 500 Msps ADC
Datasheet	AT84AS001 Datasheet

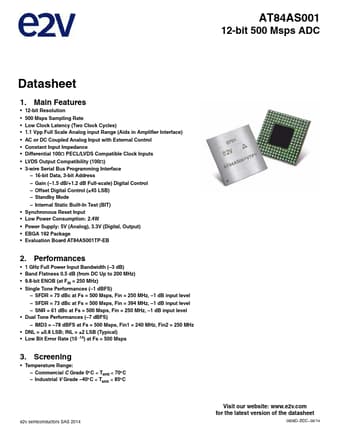

Additional preview pages of the AT84AS001 datasheet.

Product details

Features

12-bit Resolution.
500 Msps Sampling Rate.
Low Clock Latency (Two Clock Cycles).
1.1 Vpp Full Scale Analog input Range (Aids in Amplifier Interface).
AC or DC Coupled Analog Input with External Control.
Constant Input Impedance.
Differential 100 PECL/LVDS Compatible Clock Inputs.
LVDS Output Compatibility (100).
3-wire Serial Bus Programming Interface.
16-bit Data, 3-bit Address.
Gain (.
