AT84AS004 - 10-bit 2 Gsps ADC

Product Overview

📥 Download Datasheet

AT84AS004 10-bit 2 Gsps ADC by e2v - Datasheet Preview — Datasheet preview – AT84AS004

Datasheet Details

Part number	AT84AS004
Manufacturer	e2v
File Size	854.79 KB
Description	10-bit 2 Gsps ADC
Datasheet	AT84AS004 Datasheet

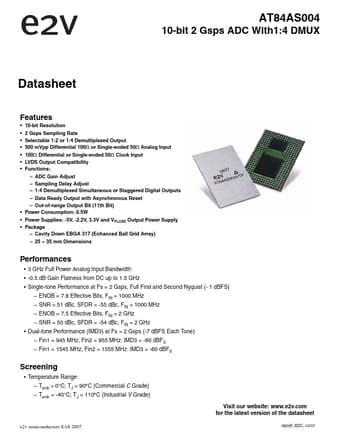

Additional preview pages of the AT84AS004 datasheet.

Product details

Description

The AT84AS004 combines a 10-bit 2 Gsps analog-to-digital converter with a 1:4 DMUX, designed for accurate digitization of broadband signals in either first or second Nyquist zone.

Features

10-bit Resolution.
2 Gsps Sampling Rate.
Selectable 1:2 or 1:4 Demultiplexed Output.
500 mVpp Differential 100Ω or Single-ended 50Ω Analog Input.
100Ω Differential or Single-ended 50Ω Clock Input.
LVDS Output Compatibility.
Functions:.
ADC Gain Adjust.
Sampling Delay Adjust.
1:4 Demultiplexed Simultaneous or Staggered Digital Outputs.
Data Ready Output with Asynchronous Reset.
Out-of-rang.
