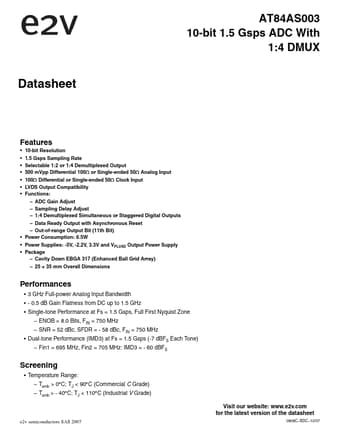

AT84AS003 Datasheet, Adc, e2v

AT84AS003 Features

• Adc
• 10-bit Resolution
• 1.5 Gsps Sampling Rate
• Selectable 1:2 or 1:4 Demultiplexed Output
• 500 mVpp Differential 100Ω or Single-ended 50Ω Analog Input <

PDF File Details

Part number:

AT84AS003

Manufacturer:

e2v

File Size:

779.88kb

Download:

📄 Datasheet

Description:

10-bit 1.5 gsps adc. The AT84AS003 combines a 10-bit 1.5 Gsps analog-to-digital converter with a 1:4 DMUX, designed for accurate digitization of broadband

AT84AS003 Application

• Applications
• Direct RF Down Conversion
• Broadband Digital Receivers
• Test Instrumentation
• High Speed Data Acqu
