74AC11157

Quadruple 2-Line to 1-Line Data Selector/Multiplexer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Rochester Electronics LLC 74AC11157DWR MUX, AC SERIES DigiKey 0 342 units
$0.88

74AC11157 Datasheet (72.35 KB)

Preview of 74AC11157 PDF Datasheet

Datasheet Details

Part number:

74AC11157

Manufacturer:

Texas Instruments ↗

File Size:

72.35 KB

Description:

Quadruple 2-line to 1-line data selector/multiplexer.

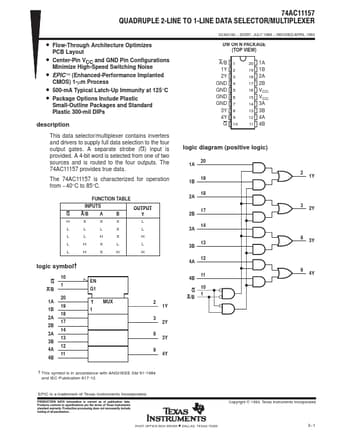

ą 74AC11157 QUADRUPLE 2ĆLINE TO 1ĆLINE DATA SELECTOR/MULTIPLEXER ą SCAS183

* D2957, JULY 1989

* REVISED APRIL 1993

* Flow-Thr.

74AC11157 General Description

DW OR N PACKAGE (TOP VIEW) A/B 1Y 2Y GND GND GND GND 3Y 4Y G 1 2 3 4 5 6 7 8 9 10 20 1A 19 1B 18 2A 17 2B 16 VCC 15 VCC 14 3A 13 3B 12 4A 11 4B This data selector/multiplexer contains inverters and drivers to supply full data selection to the four output gates. A separate strobe (G) input is pr.
