74HC32 Datasheet, Gate, Texas Instruments

74HC32 Features

  • Gate
  • Buffered inputs
  • Wide operating voltage range: 2 V to 6 V
  • Wide operating temperature range:
      –40°C to +85°C
  • Supports fanout up to 1

PDF File Details

Part number:

74HC32

Manufacturer:

Texas Instruments ↗

File Size:

1.79MB

Download:

📄 Datasheet

Description:

Quad 2-input or gate. This device contains four independent 2-input OR gates. Each gate performs the Boolean function Y = A + B in positive logic. Device

Datasheet Preview: 74HC32 📥 Download PDF (1.79MB)

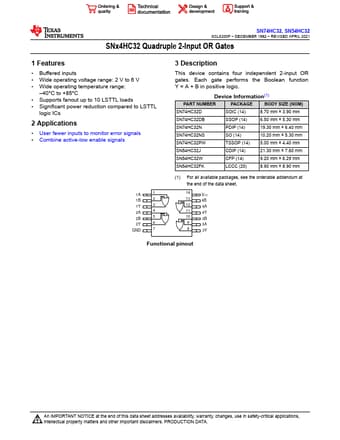

Page 2 of 74HC32 Page 3 of 74HC32

74HC32 Application

  • Applications
  • User fewer inputs to monitor error signals
  • Combine active-low enable signals 1A 1 1B 2 1Y 3 2A 4 2B 5 2Y
