74HC367

Three-State Non-Inverting and Inverting

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74HC367PW,118 IC BUFFER NON-INVERT 6V 16TSSOP DigiKey 2384 1000 units
$0.3

74HC367 Datasheet (1.00 MB)

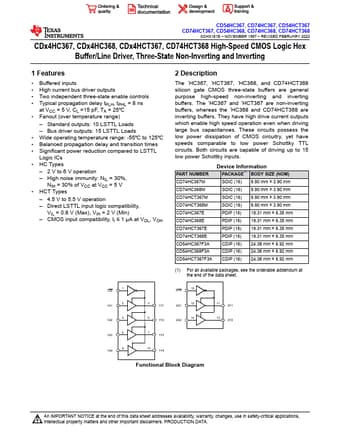

Preview of 74HC367 PDF

Datasheet Details

Part number:

74HC367

Manufacturer:

Texas Instruments ↗

File Size:

1.00 MB

Description:

Three-state non-inverting and inverting.
CD54HC367, CD74HC367, CD54HCT367 CD74HCT367, CD54HC368, CD74HC368, CD74HCT368 SCHS181E

* NOVEMBER 1997

* REVISED FEBRUARY 2022 CDx4HC3.

74HC367 Features

* Buffered inputs

* High current bus driver outputs

* Two independent three-state enable controls

* Typical propagation delay tPLH, tPHL = 8 ns at VCC = 5 V, CL =15 pF, TA = 25℃

* Fanout (over temperature range)

* Standard outputs: 10 LSTTL Loads

74HC367 General Description

The ’HC367, ’HCT367, ’HC368, and CD74HCT368 silicon gate CMOS three-state buffers are general purpose high-speed non-inverting and inverting buffers. The ’HC367 and ’HCT367 are non-inverting buffers, whereas the ’HC368 and CD74HCT368 are inverting buffers. They have high drive current outputs which.
