74HC366-Q100 - Hex buffer/line driver

Product Overview

nexperia

📥 Download Datasheet

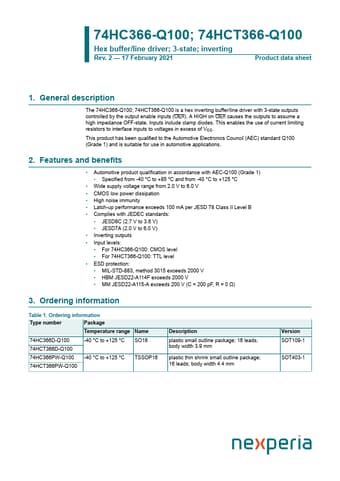

74HC366-Q100 Hex buffer/line driver by nexperia - Datasheet Preview — Datasheet preview – 74HC366-Q100

Datasheet Details

Part number	74HC366-Q100
Manufacturer	nexperia
File Size	267.74 KB
Description	Hex buffer/line driver
Datasheet	74HC366-Q100 Datasheet
Additional preview pages of the 74HC366-Q100 datasheet.

Product details

Description

The 74HC366-Q100; 74HCT366-Q100 is a hex inverting buffer/line driver with 3-state outputs controlled by the output enable inputs (OEn).

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Inverting outputs.
Input.
