74HC365DB

Hex buffer/line driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74HC365DB,118 IC BUFFER NON-INVERT 6V 16SSOP DigiKey 0 20000 units
$0.34

74HC365DB Datasheet (282.80 KB)

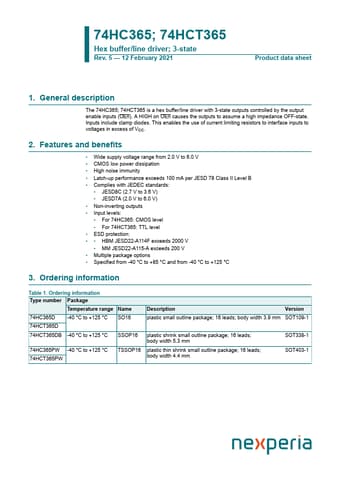

Preview of 74HC365DB PDF Datasheet

Datasheet Details

Part number:

74HC365DB

Manufacturer:

nexperia ↗

File Size:

282.80 KB

Description:

Hex buffer/line driver

74HC365DB Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HC365DB General Description

The 74HC365; 74HCT365 is a hex buffer/line driver with 3-state outputs controlled by the output enable inputs (OEn). A HIGH on OEn causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages .
