ADC12040

A/D Converter

ADC12040 Features

* 1

* 2 Single +5V Supply Operation

* Internal Sample-and-Hold

* Outputs 2.35V to 5V Compatible

* Pin Compatible with ADC12010, ADC12020, ADC12L063, ADC12L066

* Power Down Mode

* On-Chip Reference Buffer APPLICATIONS

* Ultrasound and Imaging

ADC12040 General Description

The ADC12040 is a monolithic CMOS analog-todigital converter capable of converting analog input signals into 12-bit digital words at 40 Megasamples per second (MSPS), minimum. This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circu.

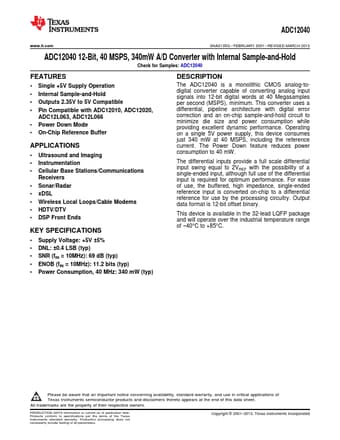

ADC12040 Datasheet (1.45 MB)

Preview of ADC12040 PDF

Datasheet Details

Part number:

ADC12040

Manufacturer:

Texas Instruments ↗

File Size:

1.45 MB

Description:

A/d converter.
ADC12040 www.ti.com SNAS135G

* FEBRUARY 2001

* REVISED MARCH 2013 ADC12040 12-Bit, 40 MSPS, 340mW A/D Converter with Internal Sampl.
