ADS7952, ADS7950 Datasheet - Texas Instruments

ADS7952 Serial Interface ADC

The ADS79xx is a 12-, 10-, 8-bit pin compatible multichannel analog-to-digital converter family. The device comparison table shows all twelve devices from this product family. The devices include a capacitor based SAR A/D converter with inherent sample and hold. The devices accept a wide analog supp.

ADS7952 Features

* 1 1-MHz Sample Rate Serial Devices

* Product Family of 12-, 10-, 8-Bit Resolution

* Zero Latency

* 20-MHz Serial Interface

* Analog Supply Range: 2.7 to 5.25 V

* I/O Supply Range: 1.7 to 5.25 V

* Two SW Selectable Unipolar, Input Ranges: 0 to

ADS7950-etcTI.pdf

This datasheet PDF includes multiple part numbers: ADS7952, ADS7950. Please refer to the document for exact specifications by model.

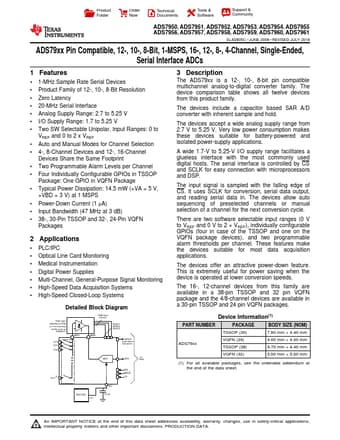

ADS7952 Datasheet Preview Page 2 ADS7952 Datasheet Preview Page 3

Datasheet Details

Part number:

ADS7952, ADS7950

Manufacturer:

Texas Instruments ↗

File Size:

4.11 MB

Description:

Serial interface adc.

Note:

This datasheet PDF includes multiple part numbers: ADS7952, ADS7950.
Please refer to the document for exact specifications by model.
