CD4066B, CMOS Quad Bilateral Switch

CD4066B SCHS051I * NOVEMBER 1998 * REVISED MAY 2024 CD4066B CMOS Quad Bilateral Switch 1 .
The CD4066B device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals.

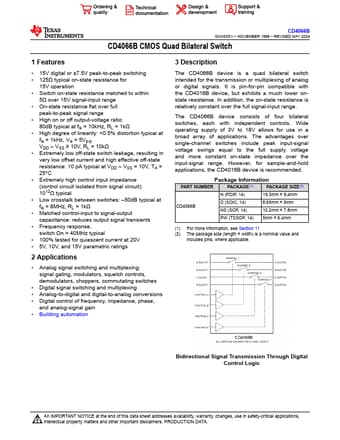

datasheet Preview Page 1 from Datasheet4u.com

CD4066B-etcTI.pdf

CD4066B Datasheet Preview — Preview of CD4066B PDF

Datasheet Details

Part number:

CD4066B

Manufacturer:

Texas Instruments ↗

File Size:

1.23 MB

Description:

CMOS Quad Bilateral Switch

Features

* 15V digital or ±7.5V peak-to-peak switching
* 125Ω typical on-state resistance for 15V operation
* Switch on-state resistance matched to within 5Ω over 15V signal-input range
* On-state resistance flat over full peak-to-peak signal range
* High on or off out

Applications

* Analog signal switching and multiplexing: signal gating, modulators, squelch controls, demodulators, choppers, commutating switches
* Digital signal switching and multiplexing
* Analog-to-digital and digital-to-analog conversions
* Digital control of frequency, impe
