CD74HC40103-EP - 8-STAGE SYNCHRONOUS DOWN COUNTER

Description

The CD74HC40103 is manufactured with high-speed silicon-gate technology and consists of an 8-stage synchronous down counter with a single output, which is active when the internal count is zero.

The device contains a single 8-bit binary counter.

Texas Instruments

📥 Download Datasheet

Datasheet Details

Part number	CD74HC40103-EP
Manufacturer	Texas Instruments
File Size	425.61 KB
Description	8-STAGE SYNCHRONOUS DOWN COUNTER
Datasheet	CD74HC40103-EP Datasheet

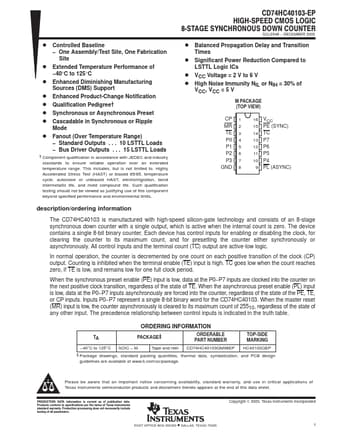

Additional preview pages of the CD74HC40103-EP datasheet.

📁 Similar Datasheet

CD74HC22106 - QMOS 8 x 8 x 1 Crosspoint Switches with Memory Control (Intersil Corporation)
CD74HC373 - OCTAL TRANSPARENT D-TYPE LATCHES (NXP)
CD74HC373E - OCTAL TRANSPARENT D-TYPE LATCHES (NXP)
CD74HC373M - OCTAL TRANSPARENT D-TYPE LATCHES (NXP)
CD74HC373M96 - OCTAL TRANSPARENT D-TYPE LATCHES (NXP)
CD74HC393 - Dual 4-Stage Binary Counter (Harris)
CD74HC393E - High Speed CMOS Logic Dual 4 -Stage Binary Counter (Harris Corporation)
CD74HC393M - High Speed CMOS Logic Dual 4 -Stage Binary Counter (Harris Corporation)
CD74HCT393 - Dual 4-Stage Binary Counter (Harris)
CD74HCT393E - Dual 4-Stage Binary Counter (Harris Corporation)

Other Datasheets by Texas Instruments

CD74HC40103-Q1 - 8-STAGE SYNCHRONOUS DOWN COUNTER
CD74HC40103 - 8-Stage Synchronous Down Counters
CD74HC40105 - 4-Bit x 16-Word FIFO Register
CD74HC4015 - Dual 4-Stage Static Shift Register
CD74HC4016 - Quad Bilateral Switch
CD74HC4017 - Decade Counter/Divider
CD74HC4017-EP - HIGH-SPEED CMOS LOGIC DECADE COUNTER/DIVIDER
CD74HC4017-Q1 - HIGH-SPEED CMOS LOGIC DECADE COUNTER/DIVIDER

Full PDF Text Transcription

Click to expand full text

D Controlled Baseline − One Assembly/Test Site, One Fabrication Site D Extended Temperature Performance of −40°C to 125°C D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree† D Synchronous or Asynchronous Preset D Cascadable in Synchronous or Ripple Mode D Fanout (Over Temperature Range) − Standard Outputs . . . 10 LSTTL Loads − Bus Driver Outputs . . . 15 LSTTL Loads † Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life.

Published: Mar 16, 2020 |
