CD74HC4016 Quad Bilateral Switch

CD74HC4016 Description

CD74HC4016 Data sheet acquired from Harris Semiconductor SCHS199C February 1998 - Revised August 2004 High-Speed CMOS Logic Quad Bilateral Switch [.
Wide Analog-Input-Voltage Range. Low “ON” Resistance - 45Ω (Typ).

CD74HC4016 Applications

* Wide Operating Temperature Range . . . -55oC to 125oC
* HC Types - 2V to 10V Operation - High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V The CD74HC4016 contains four independent digitally controlled analog switches that use silicon-gate CMOS technology to achieve oper

📥 Download Datasheet

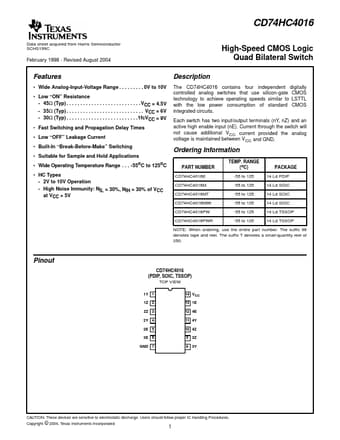

Preview of CD74HC4016 PDF
