CD74HCT423, CD74HC123, High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators

Data sheet acquired from Harris Semiconductor SCHS142F September 1997 - Revised October 2003 CD54/74HC123, CD54/74HCT123, CD74HC423, CD74HCT423 High-.
The ’HC123, ’HCT123, CD74HC423 and CD74HCT423 are dual monostable multivibrators with resets.

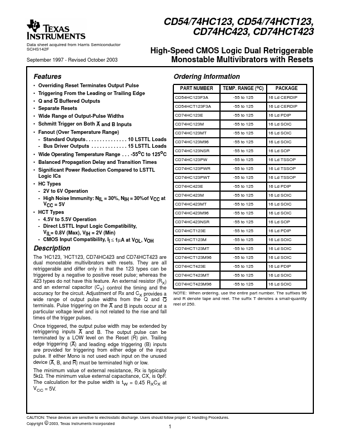

datasheet Preview Page 1 from Datasheet4u.com

CD74HC123-etcTI.pdf

CD74HCT423 Datasheet Preview — This datasheet PDF includes multiple part numbers: CD74HCT423, CD74HC123. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CD74HCT423, CD74HC123

Manufacturer:

Texas Instruments ↗

File Size:

1.02 MB

Description:

High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators

Note:

This datasheet PDF includes multiple part numbers: CD74HCT423, CD74HC123.
Please refer to the document for exact specifications by model.

Features

* Overriding Reset Terminates Output Pulse
* Triggering From the Leading or Trailing Edge
* Q and Q Buffered Outputs
* Separate Resets
* Wide Range of Output-Pulse Widths
* Schmitt Trigger on Both A and B Inputs
* Fanout (Over Temperature Range
