* Description
* Buffered Inputs and Outputs
* Typical Propagation Delay: CL = 15pF, TA = 25oC 12ns at VCC = 5V,
* Fanout (Over Temperature Range) - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL

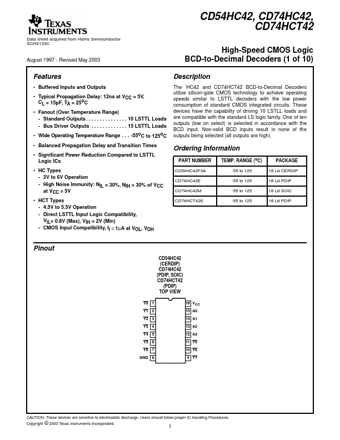

CD74HCT42E Datasheet (339.13 KB)
CD74HCT42E
339.13 KB
Bcd-to-decimal decoders.
Data sheet acquired from Harris Semiconductor SCHS133C
August 1997 - Revised May 2003
CD54HC42, CD74HC42, CD74HCT42
High-Speed CMOS Logic BCD-to-Deci.
