CDCM1804 - 1:3 LVPECL CLOCK BUFFER + ADDITIONAL LVCMOS OUTPUT AND PROGRAMMABLE DIVIDER

Texas Instruments

📥 Download Datasheet

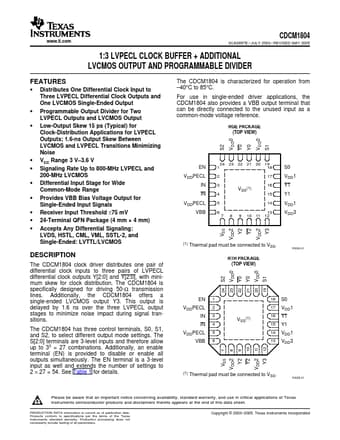

CDCM1804 Datasheet Preview — Preview of CDCM1804 PDF

Datasheet Details

Part number: CDCM1804
Manufacturer: Texas Instruments ↗
File Size: 2.19 MB
Datasheet: CDCM1804-etcTI.pdf
Description: 1:3 LVPECL CLOCK BUFFER + ADDITIONAL LVCMOS OUTPUT AND PROGRAMMABLE DIVIDER

CDCM1804 Product details

Description

The CDCM1804 clock driver distributes one pair of differential clock inputs to three pairs of LVPECL differential clock outputs Y[2:0] and Y[2:0], with minimum skew for clock distribution.

Features

Distributes One Differential Clock Input to Three LVPECL Differential Clock Outputs and One LVCMOS Single-Ended Output.
Programmable Output Divider for Two LVPECL Outputs and LVCMOS Output.
Low-Output Skew 15 ps (Typical) for Clock-Distribution.
