CDCVF2510A Datasheet - Texas Instruments

CDCVF2510A 3.3-V PHASE-LOCK LOOP CLOCK DRIVER

The CDCVF2510A is a high-performance, low-skew, low-jitter, phase-lock loop (PLL) clock driver. The CDCVF2510A uses a phase-lock loop (PLL) to precisely align, in both frequency and phase, the feedback (FBOUT) output to the clock (CLK) input signal. It is specifically designed for use with synchrono.

CDCVF2510A Features

* 1

* Designed to Meet and Exceed PC133 SDRAM Registered DIMM Specification Rev. 1.1

* Spread Spectrum Clock Compatible

* Operating Frequency 20 MHz to 175 MHz

* Static Phase Error Distribution at 66 MHz to 166 MHz is ±125 ps

* Jitter (cyc

* cyc) at 66 MHz

CDCVF2510A Datasheet (425.08 KB)

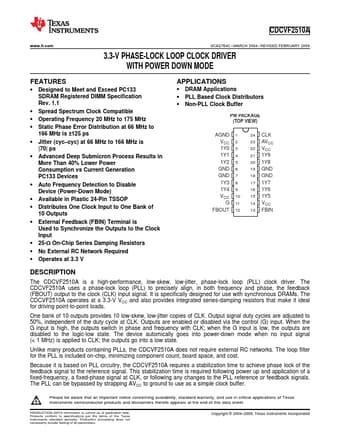

Preview of CDCVF2510A PDF

Datasheet Details

Part number:

CDCVF2510A

Manufacturer:

Texas Instruments ↗

File Size:

425.08 KB

Description:

3.3-v phase-lock loop clock driver.
