DAC80504

SPI voltage-output DAC

DAC80504 Features

* 1 Performance

* INL: ±1 LSB Maximum at 16-Bit Resolution

* TUE: ±0.1% of FSR Maximum

* Integrated 2.5 V Precision Internal Reference

* Initial Accuracy: ±5 mV, Maximum

* Low Drift: 2 ppm/°C Typical

* High Drive Capability: 20 mA With 0.5 V Fro

DAC80504 General Description

The DAC80504, DAC70504, and DAC60504 (DACx0504) are a pin-compatible family of lowpower, four-channel, buffered voltage-output, digitalto-analog converters (DACs) with 16-, 14-, and 12-bit resolution. The DACx0504 includes a low drift, 2.5-V internal reference, eliminating the need for an external p.

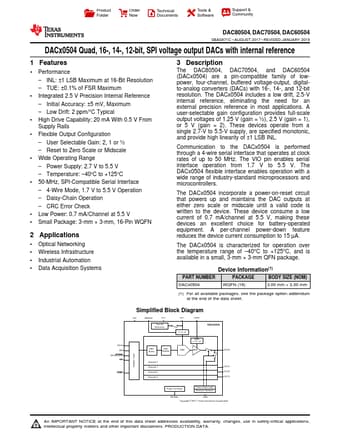

DAC80504 Datasheet (1.61 MB)

Preview of DAC80504 PDF

Datasheet Details

Part number:

DAC80504

Manufacturer:

Texas Instruments ↗

File Size:

1.61 MB

Description:

Spi voltage-output dac.
Product Folder Order Now Technical Documents Tools & Software Support & Community DAC80504, DAC70504, DAC60504 SBAS871C
