DLP3010

0.3 720p DMD

Texas Instruments

DLP3010 Features

* 1 0.3-Inch (7.93-mm) Diagonal Micromirror Array

* 1280 × 720 Array of Aluminum MicrometerSized Mirrors, in an Orthogonal Layout

* 5.4-µm Micromirror Pitch

* ±17° Micromirror Tilt (Relative to Flat Surface)

* Side Illumination for Optimal Efficiency and Optica

DLP3010 General Description

The DLP3010 digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DLP3010 DMD displays a very crisp and high quality image or video. DLP3010 is part of the chipset compr.

DLP3010 Datasheet (1.02 MB)

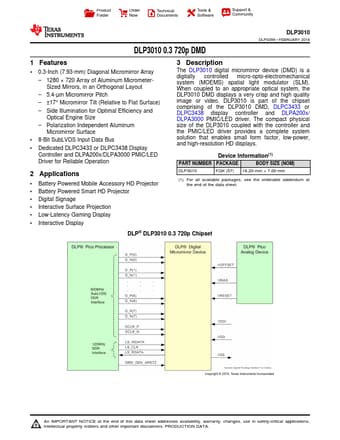

DLP3010 Datasheet Preview — Preview of DLP3010 PDF

Datasheet Details

Part number:

DLP3010

Manufacturer:

Texas Instruments ↗

File Size:

1.02 MB

Description:

0.3 720p dmd.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLP3010 0.3 720p DMD DLP3010 DLPS099

* FEBRUARY 2018 .
