DLP3030-Q1

0.3-Inch WVGA DMD

DLP3030-Q1 Features

* 1 Automotive qualified

* 0.3-inch diagonal micromirror array

* 7.6-µm micromirror pitch

* ±12° micromirror tilt angle (relative to flat state)

* Side illumination for optimized efficiency

* WVGA (864 × 480) resolution

* Polarization independen

DLP3030-Q1 General Description

The DLP3030-Q1 Automotive DMD is primarily targeted for automotive head-up display (HUD) applications with very large field of view or augmented reality capability requiring long focal distances. This chipset can be coupled with LEDs or lasers to create deep saturated colors with over 125% NTSC colo.

DLP3030-Q1 Datasheet (768.48 KB)

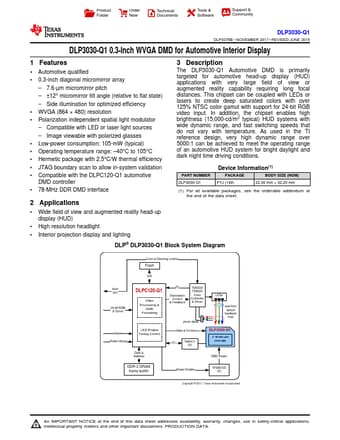

Preview of DLP3030-Q1 PDF

Datasheet Details

Part number:

DLP3030-Q1

Manufacturer:

Texas Instruments ↗

File Size:

768.48 KB

Description:

0.3-inch wvga dmd.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLP3030-Q1 DLPS076B

* NOVEMBER 2017

* REVISED J.
