DLP3034-Q1

0.3-Inch WVGA DMD

DLP3034-Q1 Features

* 1 Automotive qualified

* 40°C to 105°C operating temperature range for DMD array

* Supports 405-nm illumination sources

* 0.3-inch diagonal micromirror array

* 7.6-µm micromirror pitch

* ±12° micromirror tilt angle (relative to flat state)

DLP3034-Q1 General Description

The DLP3034-Q1 automotive DMD is primarily targeted for transparent window display applications. This chipset can be coupled with 405-nm illumination sources (e.g. LEDs or lasers) in an optical projection system to project onto windows embedded with emissive phosphor films. When these transparent em.

DLP3034-Q1 Datasheet (852.98 KB)

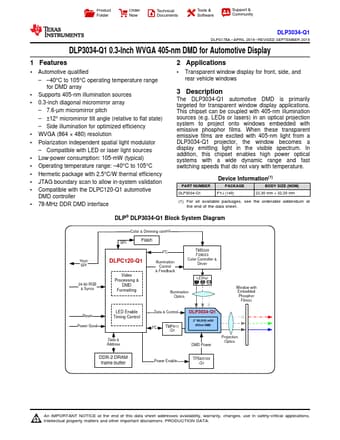

Preview of DLP3034-Q1 PDF

Datasheet Details

Part number:

DLP3034-Q1

Manufacturer:

Texas Instruments ↗

File Size:

852.98 KB

Description:

0.3-inch wvga dmd.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLP3034-Q1 DLPS176A

* APRIL 2019

* REVISED SEPT.
