DLP3021-Q1

0.3-Inch WVGA DMD

DLP3021-Q1 Features

* 1 Automotive qualified

* 0.3-inch diagonal micromirror array

* 7.6-µm micromirror pitch

* ±12° micromirror tilt angle (relative to flat state)

* Side illumination for reduced system size

* WVGA (864 × 480) input resolution

* Polarization indep

DLP3021-Q1 General Description

The DLP3021-Q1 Automotive DMD is primarily targeted for automotive exterior light control and display applications, such as ground projection with the ability to display dynamic content. Ground projections can help facilitate vehicle to pedestrian (V2P) communication, such as back up and door open w.

DLP3021-Q1 Datasheet (587.69 KB)

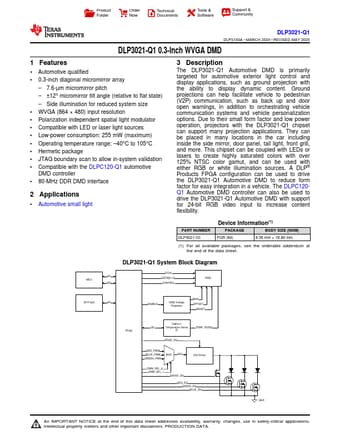

Preview of DLP3021-Q1 PDF

Datasheet Details

Part number:

DLP3021-Q1

Manufacturer:

Texas Instruments ↗

File Size:

587.69 KB

Description:

0.3-inch wvga dmd.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLP3021-Q1 DLPS183A

* MARCH 2020

* REVISED MAY .
