DRV10983Z

12-V to 24-V 3-Phase Sensorless BLDC Motor Driver

DRV10983Z Features

* 1 Input Voltage Range: 8 to 28 V

* Total Driver H + L rDS(on): 250 mΩ

* Drive Current: 2-A Continuous Winding Current (3-A Peak)

* Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme

* Continuous Sinusoidal 180° Commutation

* No Exte

DRV10983Z General Description

The DRV10983 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A. The device is specifically designed for cost-sensitive, lownoise, low-external-component-count applications. The DRV10983 device uses a proprietary sensor.

DRV10983Z Datasheet (2.40 MB)

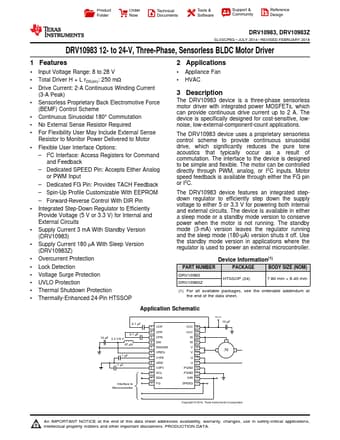

Preview of DRV10983Z PDF

Datasheet Details

Part number:

DRV10983Z

Manufacturer:

Texas Instruments ↗

File Size:

2.40 MB

Description:

12-v to 24-v 3-phase sensorless bldc motor driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design DRV10983, DRV10983Z SLVSCP6G

* JULY 2.
