DRV10987

12-V to 24-V 3-Phase Sensorless BLDC Motor Driver

DRV10987 Features

* 1 Operation Voltage Range:

* Motor Operation, 6.2 V to 28 V

* Total Driver H + L rDS(on)

* 250 mΩ at TA = 25°C

* Drive Current: 2-A Continuous Winding Current (3-A Peak)

* Sensorless Sinusoidal 180° Commutation Scheme

* Configurable Output PWM

DRV10987 General Description

The DRV10987 device is a 3-phase sensorless 180° sinusodial motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A. The device is specifically designed for cost-sensitive, low-noise, low-external-componentcount fan and pump applications.™ The DRV10987 device.

DRV10987 Datasheet (2.41 MB)

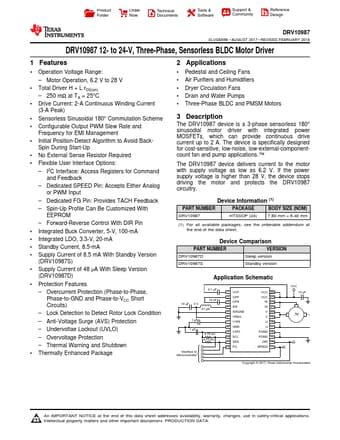

Preview of DRV10987 PDF

Datasheet Details

Part number:

DRV10987

Manufacturer:

Texas Instruments ↗

File Size:

2.41 MB

Description:

12-v to 24-v 3-phase sensorless bldc motor driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design DRV10987 SLVSE89B

* AUGUST 2017
<.
