DRV10983-Q1

Sensorless BLDC Motor Driver

DRV10983-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level 1C

* Device CDM ESD Classification Level C4

DRV10983-Q1 General Description

The DRV10983-Q1 device is a 3-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A. The device is specifically designed for cost-sensitive, lownoise, low-external-component-count fan and pump applications.™ The DRV10983-Q1 device preserves.

DRV10983-Q1 Datasheet (2.38 MB)

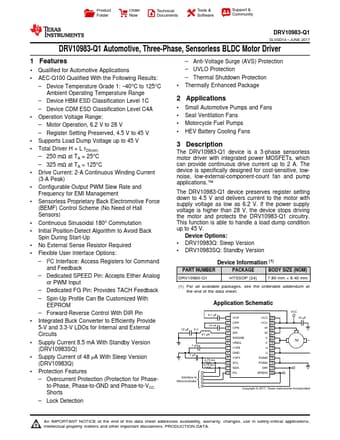

Preview of DRV10983-Q1 PDF

Datasheet Details

Part number:

DRV10983-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.38 MB

Description:

Sensorless bldc motor driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community DRV10983-Q1 SLVSD14

* JUNE 2017 DRV10983-Q1 Automotive,.
