DRV3202-Q1 - 3-Phase Brushless Motor Driver

Texas Instruments

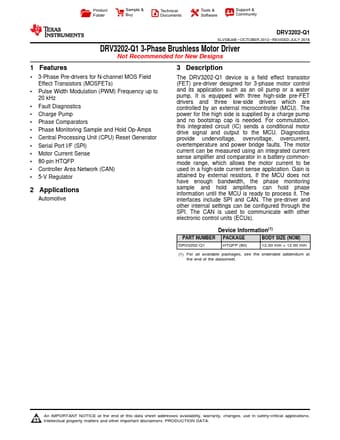

DRV3202-Q1 Datasheet Preview — Preview of DRV3202-Q1 PDF

Datasheet Details

Part number	DRV3202-Q1
Manufacturer	Texas Instruments ↗
File Size	583.28 KB
Description	3-Phase Brushless Motor Driver
Datasheet	DRV3202-Q1-etcTI.pdf

DRV3202-Q1 Product details

Description

The DRV3202-Q1 device is a field effect transistor (FET) pre-driver designed for 3-phase motor control and its application such as an oil pump or a water pump.

Features

1 3-Phase Pre-drivers for N-channel MOS Field Effect Transistors (MOSFETs).
Pulse Width Modulation (PWM) Frequency up to 20 kHz.
Fault Diagnostics.
Charge Pump.
Phase Comparators.
Phase Monitoring Sample and Hold Op-Amps.
Central Processing Unit (CPU) Reset Generator.
Serial Port I/F (SPI).
Motor Current Sense.
80-pin HTQFP.
Controller Area Network (CAN).
5-V Regulator 2.
