DRV3203E-Q1 Datasheet - Texas Instruments

DRV3203E-Q1 - Three-Phase Brushless Motor Driver

The DRV3203E-Q1 device is a field-effect transistor (FET) pre-driver designed for three-phase motor control for applications such as an oil pump or a water pump.

The device has three high-side pre-FET drivers and three low-side drivers which are under the control of an external MCU.

A charge pump su

DRV3203E-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified with the Following Results:

* Device Temperature Grade 0:

* 40℃ to 150℃ Ambient Operating Temperature Range

* Device HBM ESD Classification Level H2

* Device CDM ESD Classification Level C2

DRV3203E-Q1-etcTI.pdf

Preview of DRV3203E-Q1 PDF

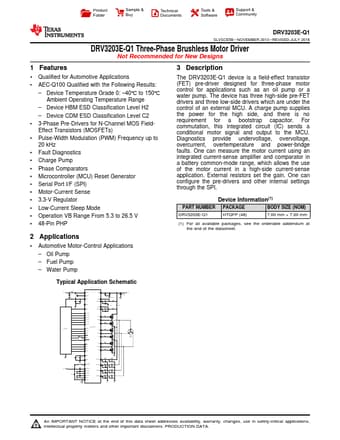

DRV3203E-Q1 Datasheet Preview Page 2 DRV3203E-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

DRV3203E-Q1

Manufacturer:

Texas Instruments ↗

File Size:

551.33 KB

Description:

Three-phase brushless motor driver.
