DRV3204-Q1

Three-Phase Brushless Motor Driver

Texas Instruments

Download Datasheet (507.93 KB)

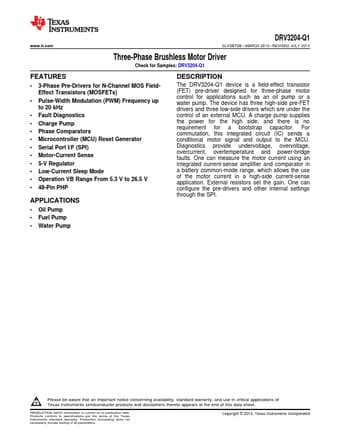

DRV3204-Q1 Datasheet Preview — Preview of DRV3204-Q1 Datasheet

Datasheet Details

Part number:

DRV3204-Q1

Manufacturer:

Texas Instruments ↗

File Size:

507.93 KB

Description:

Three-phase brushless motor driver.
www.ti.com DRV3204-Q1 SLVSBT3B * MARCH 2013 * REVISED JULY 2013 Three-Phase Brushless Motor Driver.
The DRV3204-Q1 device is a field-effect transistor (FET) pre-driver designed for three-phase motor c.

✔ DRV3204-Q1 Features

1
3-Phase Pre-Drivers for N-Channel MOS FieldEffect Transistors (MOSFETs)
Pulse-Width Modulation (PWM) Frequency up to 20 kHz
Fault Diagnostics
Charge Pump
Phas

✔ DRV3204-Q1 Application

Oil Pump
Fuel Pump
Water Pump DESCRIPTION The DRV3204-Q1 device is a field-effect transistor (FET) pr
