DRV3210-Q1 Datasheet - Texas Instruments

DRV3210-Q1 Three-Phase Brushless Motor Driver

The DRV3210-Q1 device is a field-effect transistor (FET) pre-driver designed for three-phase motor control for applications such as an oil pump or a water pump. The device has three high-side pre-FET drivers and three low-side drivers which are under the control of an external MCU. A charge pump sup.

DRV3210-Q1 Features

* 1 3-Phase Pre-Drivers for N-Channel MOS FieldEffect Transistors (MOSFETs)

* Pulse-Width Modulation (PWM) Frequency up to 20 kHz

* Fault Diagnostics

* Charge Pump

* Phase Comparators

* Microcontroller (MCU) Reset Generator

* Serial Port I/F (SP

DRV3210-Q1-etcTI.pdf

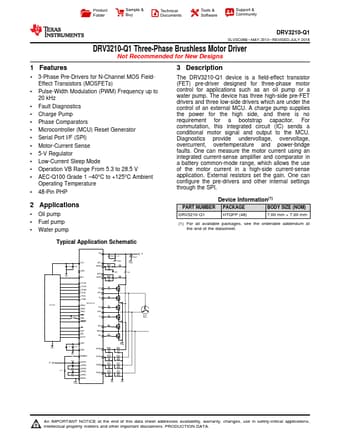

Preview of DRV3210-Q1 PDF
