INA2181

Bidirectional low- and high-side voltage output current-sense amplifiers

Texas Instruments

INA2181 Features

* Common-mode range (VCM):

* 0.2 V to +26 V

* High bandwidth: 350 kHz (A1 devices)

* Offset voltage:

* ±150 µV (maximum) at VCM = 0 V

* ±500 µV (maximum) at VCM = 12 V

* Output slew rate: 2 V/µs

* Bidirectional current-sensing capabilit

INA2181 General Description

The INA181, INA2181, and INA4181 (INAx181) current sense amplifiers are designed for costoptimized applications. These devices are part of a family of bidirectional, current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at commonmode v.

INA2181 Datasheet (2.57 MB)

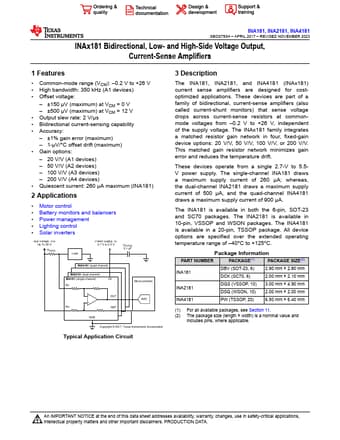

INA2181 Datasheet Preview — Preview of INA2181 PDF

Datasheet Details

Part number:

INA2181

Manufacturer:

Texas Instruments ↗

File Size:

2.57 MB

Description:

Bidirectional low- and high-side voltage output current-sense amplifiers.
INA181, INA2181, INA4181 SBOS793H

* APRIL 2017

* REVISED NOVEMBER 2023 INAx181 Bidirectional, Low- and High-Side Voltage Output, Curre.
