INA241B

Ultra-Precise Current Sense Amplifier

Texas Instruments

INA241B Features

* Enhanced PWM rejection optimized for systems subject to switching common-mode voltages

* Supports switching frequencies up to 125 kHz

* Wide common-mode voltage:

* Operational voltage:

* 5 V to +110 V

* Survival voltage:

* 20 V to +120 V

INA241B General Description

The INA241x is an ultra-precise, bidirectional current sense amplifier than can measure voltage drops across shunt resistors over a wide common-mode range from

*5 V to 110 V, independent of the supply voltage. The high-precision current measurement is achieved through a combination of low o.

INA241B Datasheet (2.77 MB)

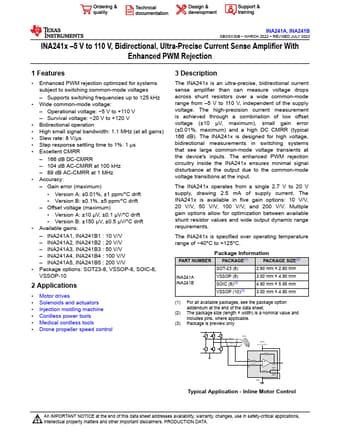

INA241B Datasheet Preview — Preview of INA241B PDF

Datasheet Details

Part number:

INA241B

Manufacturer:

Texas Instruments ↗

File Size:

2.77 MB

Description:

Ultra-precise current sense amplifier.
INA241A, INA241B SBOSA30B

* MARCH 2022

* REVISED JULY 2023 INA241x

*5 V to 110 V, Bidirectional, Ultra-Precise Current Sense A.
