ISO122 - Precision Lowest-Cost Isolation Amplifier

ISO122 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO122 SBOS160A * NOVEMBER 1993 * REVISED JA.
The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulationdemodulation technique.

ISO122 Features

* 1 100% Tested for High-Voltage Breakdown
* Rated 1500 Vrms
* High IMR: 140 dB at 60 Hz
* Bipolar Operation: VO = ±10 V
* 16-Pin Plastic DIP and 28-Lead SOIC
* Ease of Use: Fixed Unity Gain Configuration
* 0.020% Maximum Nonlinearity

ISO122 Applications

* Industrial Process Control:
* Transducer Isolator, Isolator for Thermocouples, RTDs, Pressure Bridges, and Flow Meters, 4-mA to 20-mA Loop Isolation
* Ground Loop Elimination
* Motor and SCR Control
* Power Monitoring
* PC-Based Data Acquisition

📥 Download Datasheet

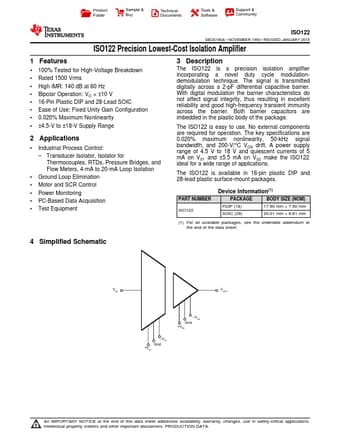

Preview of ISO122 PDF
datasheet Preview Page 2 datasheet Preview Page 3
