ISO7241A, ISO7240A, 1-Mbps QUAD DIGITAL ISOLATORS

www.ti.com Not Recommended for New Designs ISO7240A ISO7241A ISO7242A SLLS905E * MAY 2008 * REVISED JANUARY 2010 1-Mbps QUAD DIGITAL .
See the Product Notification section.

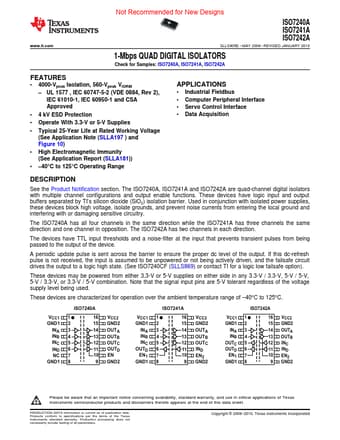

datasheet Preview Page 1 from Datasheet4u.com

ISO7240A-etcTI.pdf

ISO7241A Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO7241A, ISO7240A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO7241A, ISO7240A

Manufacturer:

Texas Instruments ↗

File Size:

1.91 MB

Description:

1-Mbps QUAD DIGITAL ISOLATORS

Note:

This datasheet PDF includes multiple part numbers: ISO7241A, ISO7240A.
Please refer to the document for exact specifications by model.

Features

* 1
* 4000-Vpeak Isolation, 560-Vpeak VIORM
* UL 1577 , IEC 60747-5-2 (VDE 0884, Rev 2), IEC 61010-1, IEC 60950-1 and CSA Approved
* 4 kV ESD Protection
* Operate With 3.3-V or 5-V Supplies

Applications

* Industrial Fieldbus
* Computer Peripheral Interface
* Servo Control Interface
