ISO7240C - Quad-Channel Digital Isolators

Texas Instruments

📥 Download Datasheet

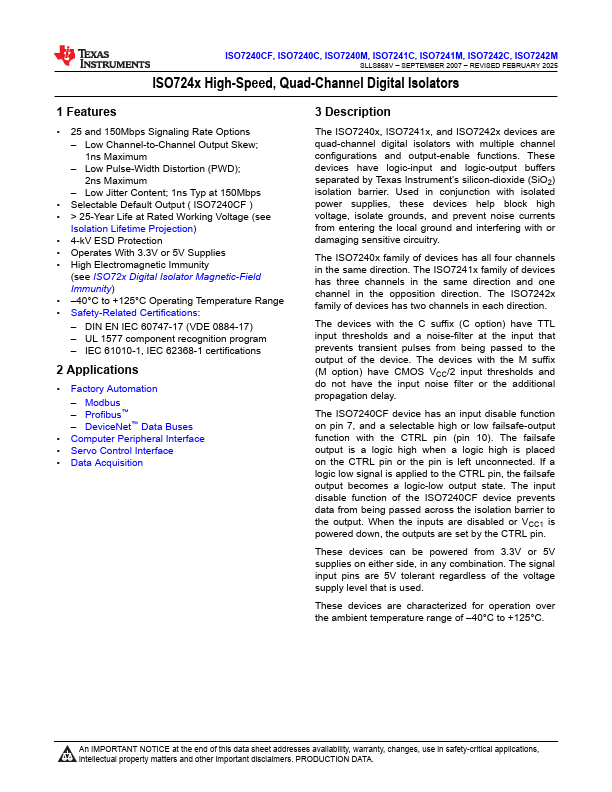

ISO7240C Datasheet Preview — Preview of ISO7240C PDF

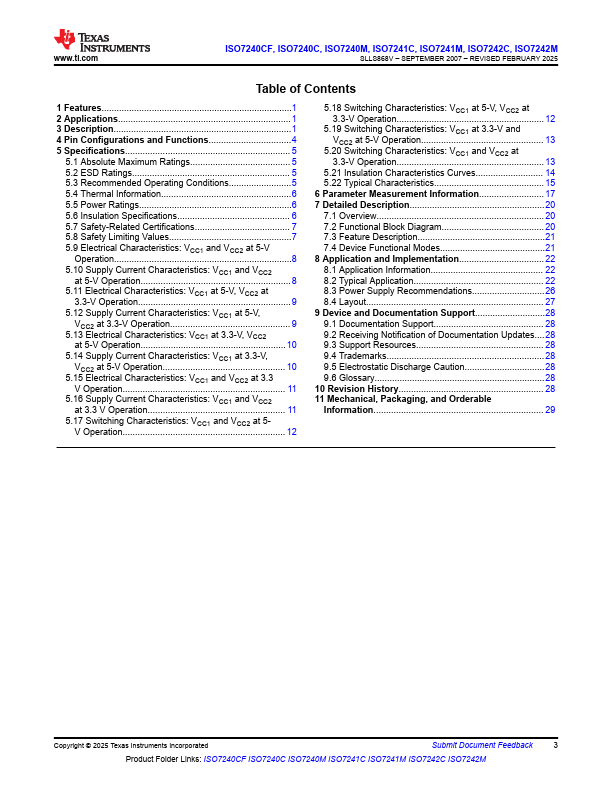

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISO7240C
Manufacturer	Texas Instruments ↗
File Size	1.99 MB
Description	Quad-Channel Digital Isolators
Datasheet	ISO7240C-etcTI.pdf

ISO7240C Product details

Description

The ISO7240x, ISO7241x, and ISO7242x devices are quad-channel digital isolators with multiple channel configurations and output-enable functions.

Features

25 and 150Mbps Signaling Rate Options.
Low Channel-to-Channel Output Skew; 1ns Maximum.
Low Pulse-Width Distortion (PWD); 2ns Maximum.
Low Jitter Content; 1ns Typ at 150Mbps.
Selectable Default Output ( ISO7240CF ).
> 25-Year Life at Rated Working Voltage (see Isolation Lifetime Projection).
4-kV ESD Protection.
Operates With 3.3V or 5V Supplies.
High Electromagnetic Immunity (see ISO72x Digital Isolator Magnetic-F.
