ISO7240C-Q1 Datasheet - Texas Instruments

HIGH-SPEED QUAD DIGITAL ISOLATORS

ISO7240C-Q1 Features

* 1

* Qualified for Automotive Applications

* Selectable Failsafe Output (ISO7240CF)

* 25 and 150-Mbps Signaling Rate Options

* Low Channel-to-Channel Output Skew; 1 ns Max

* Low Pulse-Width Distortion (PWD); 2 ns Max

* Low Jitter Content; 1 ns Typ at 15

ISO7240C-Q1 General Description

The ISO7240, ISO7241 and ISO7242 are quad-channel digital isolators with multiple channel configurations and output enable functions. These devices have logic input and output buffers separated by TI’s silicon dioxide (SiO2) isolation barrier. Used in conjunction with isolated power supplies, these .

ISO7240C-Q1 Datasheet (1.60 MB)

Rating: 1 ★ (3 votes)

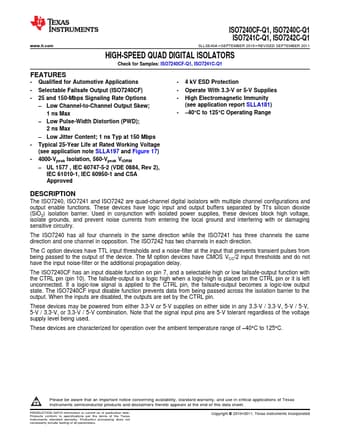

Preview of ISO7240C-Q1 PDF

Datasheet Details

Part number:

ISO7240C-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.60 MB

Description:

High-speed quad digital isolators.
www.ti.com ISO7240CF-Q1, ISO7240C-Q1 ISO7241C-Q1, ISO7242C-Q1 SLLSE40A SEPTEMBER 2010 REVISED SEPTEMBER 2011 HIGH-SPEED QUAD DIGI.
