ISO7241C, ISO7240C Quad-Channel Digital Isolators

Texas Instruments

Description

ISO7240CF, ISO7240C, ISO7240M, ISO7241C, ISO7241M, ISO7242C, ISO7242M SLLS868V * SEPTEMBER 2007 * REVISED FEBRUARY 2025 ISO724x High-S.
The ISO7240x, ISO7241x, and ISO7242x devices are quad-channel digital isolators with multiple channel configurations and output-enable functions.

📥 Download Datasheet

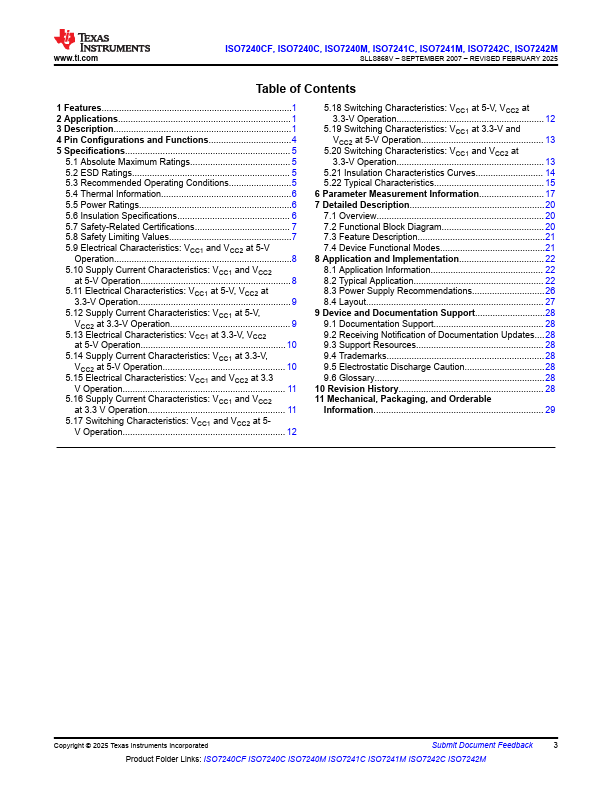

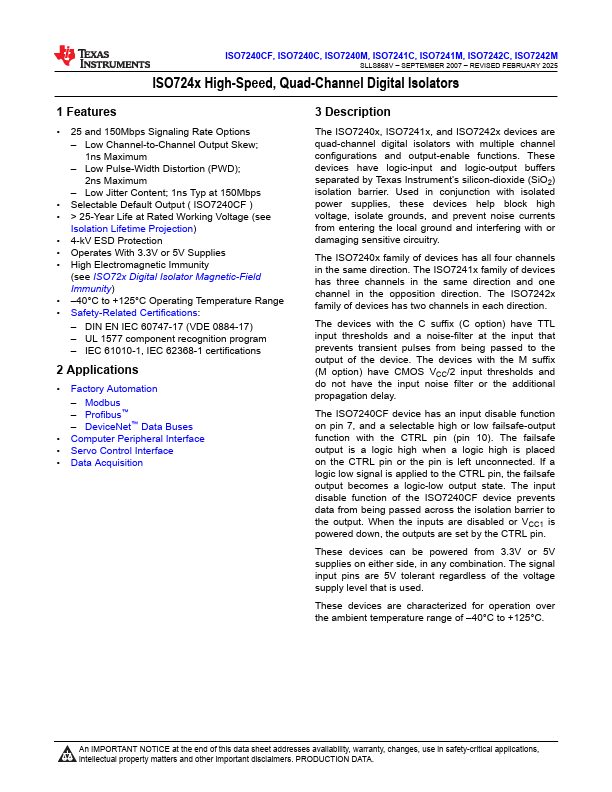

ISO7241C Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO7241C, ISO7240C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ISO7241C, ISO7240C
Manufacturer: Texas Instruments ↗
File Size: 1.99 MB
Datasheet: ISO7240C-etcTI.pdf
Description: Quad-Channel Digital Isolators
Note: This datasheet PDF includes multiple part numbers: ISO7241C, ISO7240C.
Please refer to the document for exact specifications by model.

Features

* 25 and 150Mbps Signaling Rate Options
* Low Channel-to-Channel Output Skew; 1ns Maximum
* Low Pulse-Width Distortion (PWD); 2ns Maximum
* Low Jitter Content; 1ns Typ at 150Mbps
* Selectable Default Output ( ISO7240CF )
* > 25-Year Life at Rated Worki

Applications

* Factory Automation
* Modbus
* Profibus™
* DeviceNet™ Data Buses
* Computer Peripheral Interface
* Servo Control Interface
