ISO7330-Q1 Datasheet - Texas Instruments

ISO7330-Q1, Triple-Channel Digital Isolators

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7330-Q1, ISO7331-Q1 SLLSER7 * NOVEMBER 2015 ISO73.
The ISO733x-Q1 family of devices provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10.

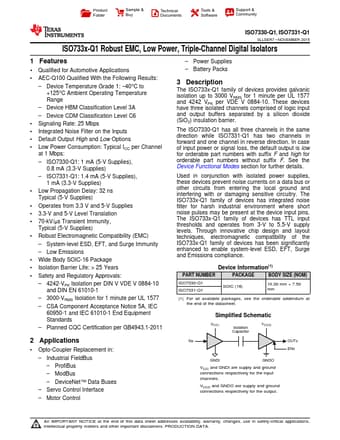

datasheet Preview Page 1 from Datasheet4u.com

ISO7330-Q1-etcTI.pdf

ISO7330-Q1 Datasheet Preview — Preview of ISO7330-Q1 PDF

Datasheet Details

Part number:

ISO7330-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.36 MB

Description:

Triple-Channel Digital Isolators

Applications

* AEC-Q100 Qualified With the Following Results:
* Device Temperature Grade 1:
* 40°C to +125°C Ambient Operating Temperature Range
* Device HBM Classification Level 3A
* Device CDM Classification Level C6
* Signaling Rate: 25 Mbps
* Integrated
