ISO7331C, ISO7330C Datasheet - Texas Instruments

ISO7331C, ISO7330C, Triple-Channel Digital Isolators

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7330C, ISO7330FC, ISO7331C, ISO7331FC SLLSEK9B * .
ISO733x provide galvanic isolation up to 3000 VRMS for 1 minute per UL and 4242 VPK per VDE.

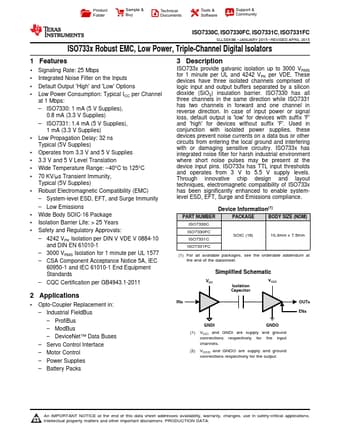

datasheet Preview Page 1 from Datasheet4u.com

ISO7330C-etcTI.pdf

ISO7331C Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO7331C, ISO7330C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO7331C, ISO7330C

Manufacturer:

Texas Instruments ↗

File Size:

2.00 MB

Description:

Triple-Channel Digital Isolators

Note:

This datasheet PDF includes multiple part numbers: ISO7331C, ISO7330C.
Please refer to the document for exact specifications by model.

Features

* 1 Signaling Rate: 25 Mbps
* Integrated Noise Filter on the Inputs
* Default Output 'High' and 'Low' Options
* Low Power Consumption: Typical ICC per Channel at 1 Mbps:
* ISO7330: 1 mA (5 V Supplies), 0.8 mA (3.3 V Supplies)
* ISO7331: 1.4 mA (5 V Supp

Applications

* Opto-Coupler Replacement in:
* Industrial FieldBus
* ProfiBus
* ModBus
* DeviceNet™ Data Buses
* Servo Control Interface
* Motor Control
* Power Supplies
